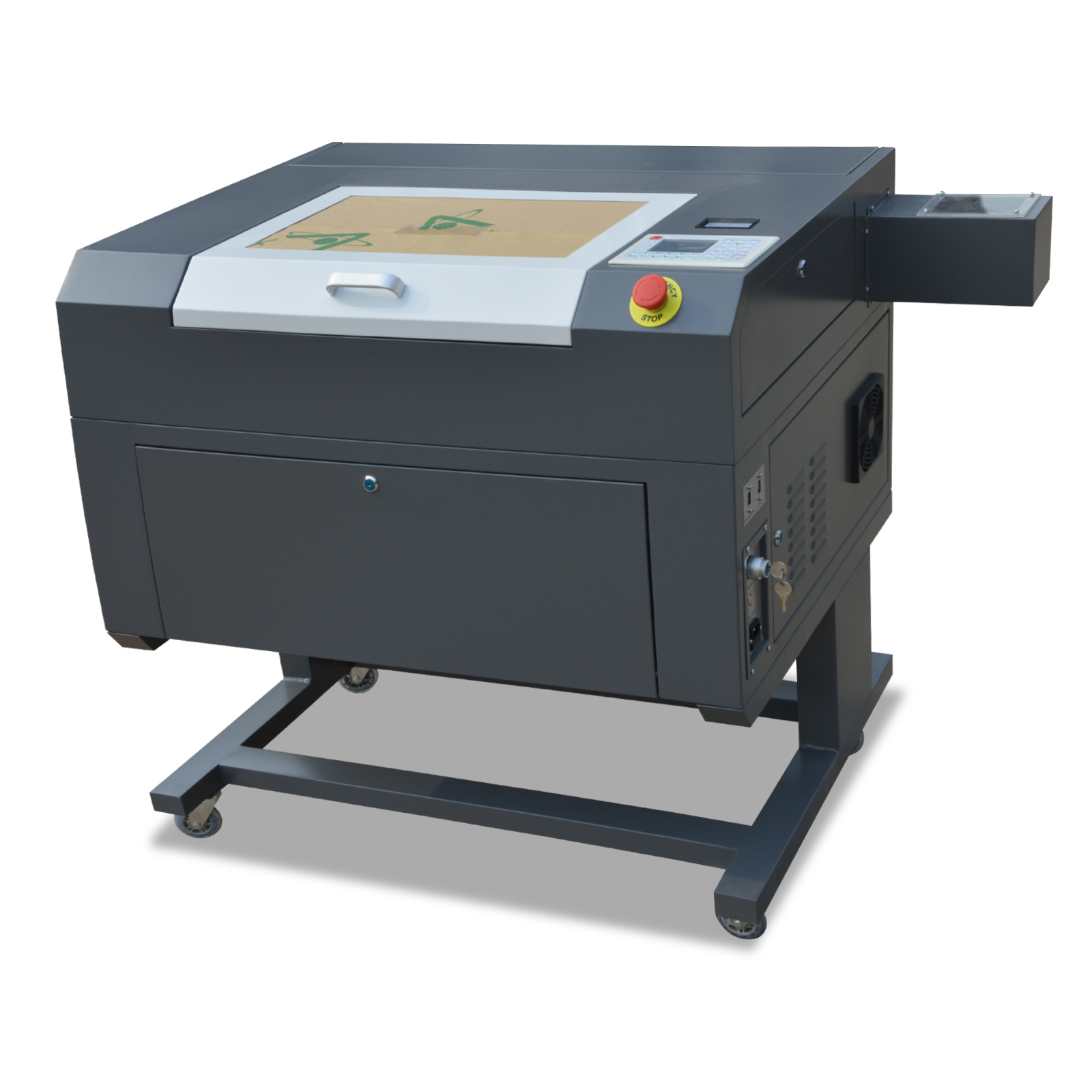

Redsail M500 Mini Laser Engraver is equipped with Texas 32 Bit DSP control system, there is a Flash memory on the mother board, you can download the work file to the machine via USB cable.
Mini Laser Engraver is the most suitable and the preferred choice of equipments in industries such as advertisement, gifts, shoes, toys, and etc.
Redsail also offers another design desktop and economic laser engraver with low cost for your choice, please go to Desktop Laser Engraver to get more information.
Redsail Mini Laser Engraving machine Specifications
Model |
M500 |
Laser tube |
Water cooling Co2 sealed glass |
Control system |
32 Bit DSP with Flash memory |
Drive type |
Stepper motor |
Laser Power |
50W |
Working Size (mm) |
300 x 500 |
Adjust Table (mm) |
200 |
Max speed |
800mm/s |
Image form |
Plt, Dxf, Bmp, Ai, Dst |
Resolution |
1000 DPI |
Repeatability |
0.01 mm |
PC Interface |
USB 3.0 and USB Disks |
Power |
110~240V/ 50~60Hz |
Warranty |
12 Months |
Machine dimensions (mm) |
1150*670*890 |
Package dimensions (mm) |
1270*790*1150 |
GW (Kg) |
125 |
