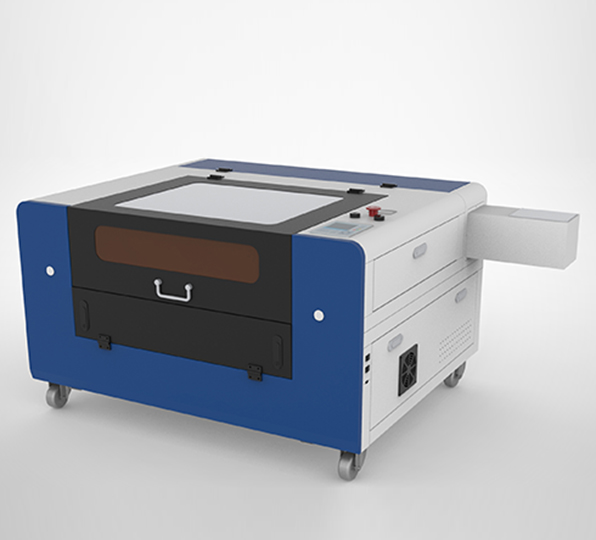

Redsail Laser Engraver is a kind of Laser Engraving Machine System equipped with Co2 laser Tube. It is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics and glass, among others. It is most suitable and the preferred choice of equipment in industries such as advertisement, gifts, shoes, toys and etc.
The Co2 Laser power of Redsail Laser Engraver is from 50W to 100W.
Redsail also offers X series economic Laser Engraving Machine which is more popular, please go to Laser Engraving Machine to get more information.
Redsail Laser Engraver Specifications
Model |
X700D |
Laser tube type |
Water CooIing Co2 Glass sealed |
Control system |
DSP |
Controller |
Ruida (RDWorks), TopWisdom(AutoLaser) |
Drive type |
Micro Stepping Motor |
Laser Power |
50W/60W/80W/100W |
Working Size (mm) |
700 x 500 |
Red Dot Pointer |
Yes |
Location precision |
<0.01mm |
Max speed |
1000 mm/s |
Image form |
Plt, Dxf, Bmp, Ai, Dst |
Resolution |
2500 DPI |
Repeatability |
0.01 mm |
PC Interface |
USB3.0/USB Disk/Network |
Motorized Up and Down table |
200mm |
Machine dimensions (mm) |
1400*920*650 |
N.W. |
100KG |
G.W. |
120KG |
