desktop cnc router

CATEGORY AND TAGS:
Laser Cutting Machine, Product

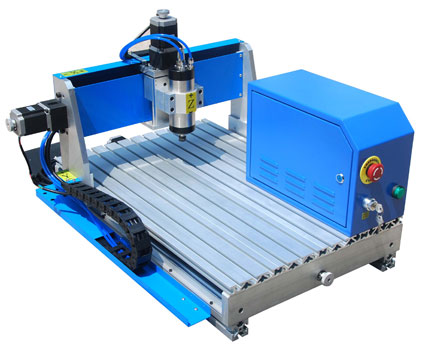

The main feature of the desktop-cnc-router is the small and simple structure under the special spindle design. Various materials can be applied by the machine, such as PVC, Acrylic, wood, PCB, even some soft metal like aluminum and copper. Besides, all the machines are equipped with DSP handle and USB connection, which will bring great convenience by reading USB memory directly (Ncstudio and Mach 3 are also good choices). In addition, the machine can achieve the performance of good resolution and less noise with ball screw.

enquiry
  • Specifications

The main feature of the desktop-cnc-router is the small and simple structure under the special spindle design. Various materials can be applied by the machine, such as PVC, Acrylic, wood, PCB, even some soft metal like aluminum and copper. Besides, all the machines are equipped with DSP handle and USB connection, which will bring great convenience by reading USB memory directly (Ncstudio and Mach 3 are also good choices). In addition, the machine can achieve the performance of good resolution and less noise with ball screw.



Redsail Desktop cnc router Specifications

Model RS-3020 RS-3040 RS-4060 RS-6090
X, Y, Z Guide Rolling ball screw
Drive type Stepper motor
X, Y, Z Work Area(mm) 320x230x55 385x315x55 385x580x55 615x905x90
Machine dimension(mm) 550x650x550 650x700x550 900x700x550 1300x950x580
Max Speed 4000mm/min
Spindle 800W high speed
Max feeding height 90mm
Interface DSP handle (read USB memory directly ) / NC Studio / Mach3
Repeatability(mm) ≦ 0.0 5 mm
Command code HPGL, G-code
Spindle tools ф 3.175, ф 6
Power AC220V ± 10% / 50~60Hz
Warranty 12 Months(6 months for Spindle)
