Auto-Feeding Laser Machine

CATEGORY AND TAGS:
Product

Redsail auto-feeding laser machine is an excellent option and effective solution for clients demanding large-scale cutting of cloth rolls and other soft materials in that cutting machine can improve the working efficiency.

enquiry
  • Specifications

Redsail auto-feeding laser machine is an excellent option and effective solution for clients demanding large-scale cutting of cloth rolls and other soft materials in that cutting machine can improve the working efficiency.

* By using advanced CCD system, NO REQUIREMENT FOR ORIGIANL GRAPHIC FILES, to achieve auto image recognition locating, contour detection and cutting at same process;

* Accurate recognition to large area achieves better both speed and precise than manual cutting;

* Laser Cutting not only solve the trimming problem on the cutting edge, but also reduce the tolerant errors which is caused by blade or scissors to touch the materials;

* Conveyor Belt Feed in system obtains unlimited cutting length on Y axis direction;

* User Friendly Interface allows easy operation and quick launch of the operation.

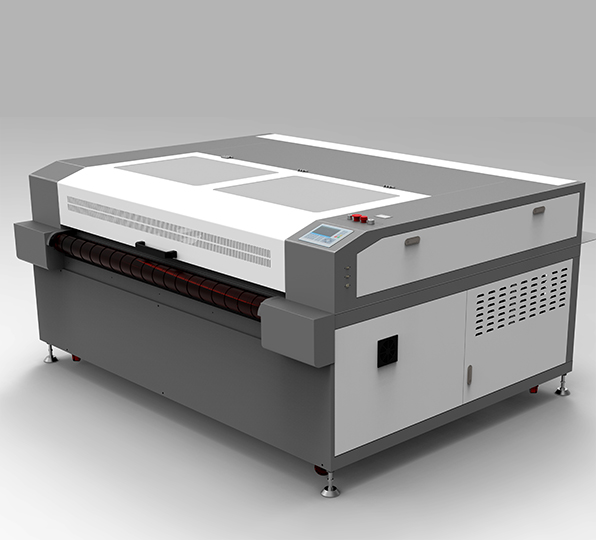

Redsail Auto-Feeding Laser Machine

Model CM1610 CM1625
Laser tube Water cooling Co2 sealed glass
Control system DSP
Drive type Microstepping stepper motor system
Laser Power 80W/100W/130W/150W/180W
Work Area (mm) 1600 x 1000 1600 x 2500
Max speed 1000 mm/s
Auo-feeding function Yes
CCD(Camera) Optional
PC Interface USB3.0/USB Disk/NetWork
Image form Plt, Dxf, Bmp, Ai, Dst
Resolution 2500 DPI
Double Head Optional
Accessories Air assistant, Exhaust system, Water cooling sytem
Power 110V or 220-240V/ 50~60Hz
Machine Size WxDxH (mm) 2320*2020*1070 3630*2300*1070
G. W. (Kg) 650 1000
