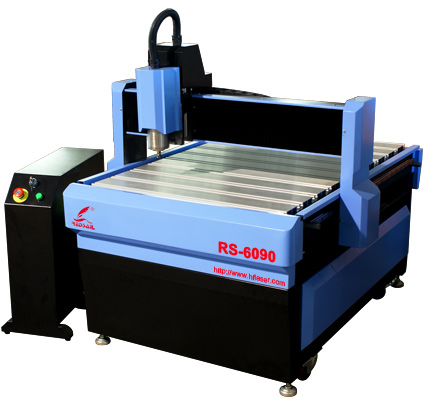

CNC Router
At Redsail, we take great pride in manufacturing the most
user-friendly, high quality, economical advanced CNC Routers.
Redsail CNC Router adopt overall casting machine body, Linear Guideways and Ballscrews, it provides long lifetime, superior cutting and engraving quality, while requiring minimal maintenance.
Redsail CNC Router can be used for advertisement engraving and cutting, mold manufacturing, wood processing, craft manufacturing, light box cutting, building model cutting, indoor decoration cutting, light equipment mold processing, acrylic board processing with high precision and high speed.
Redsail CNC Routers are easy to learn and operate, the control system
of CNC Router is compatible with
Type3/Artcam/UG/Pro-E/Mastercam/Ucancam V9 and so on.
Redsail CNC Router Specifications
| Model | RS-6090 | RS-1312 | RS-1318 | RS-1324 |
| Worktable Size (mm) | 600*900 | 1300*1200 | 1300*1800 | 1300*2400 |
| Max Moving Speed (mm/min) | 8000 | |||
| Max Machining Speed (mm/min) | 4000 | |||
| Machine Precision (mm) | 0.02 | |||
| Repeatability (mm) | 0.01 | |||
| XY Working Area (mm) | 600*800 | 1300*1160 | 1300*1750 | 1300*2350 |
| Gantry Height (mm) | 100 | 150 | 150 | 150 |
| Drive Type | Micro-step Stepper Motor | |||
| Spindle (kw) | 1.5 | 2.2 | 2.2 | 2.2 |
| Spindle Speed (rpm) | 0~24000 | |||
| Spindle Tools | ф3.715/ф6 | ф3.715/ф6 | ||
| Command Code | HP-GL, G-code | |||
| Power Supply | AC 220V±10%/50~60HZ | |||
